Weighing machines

UPMATIC 2114DV

For a wide variety of product shapes and quantities.

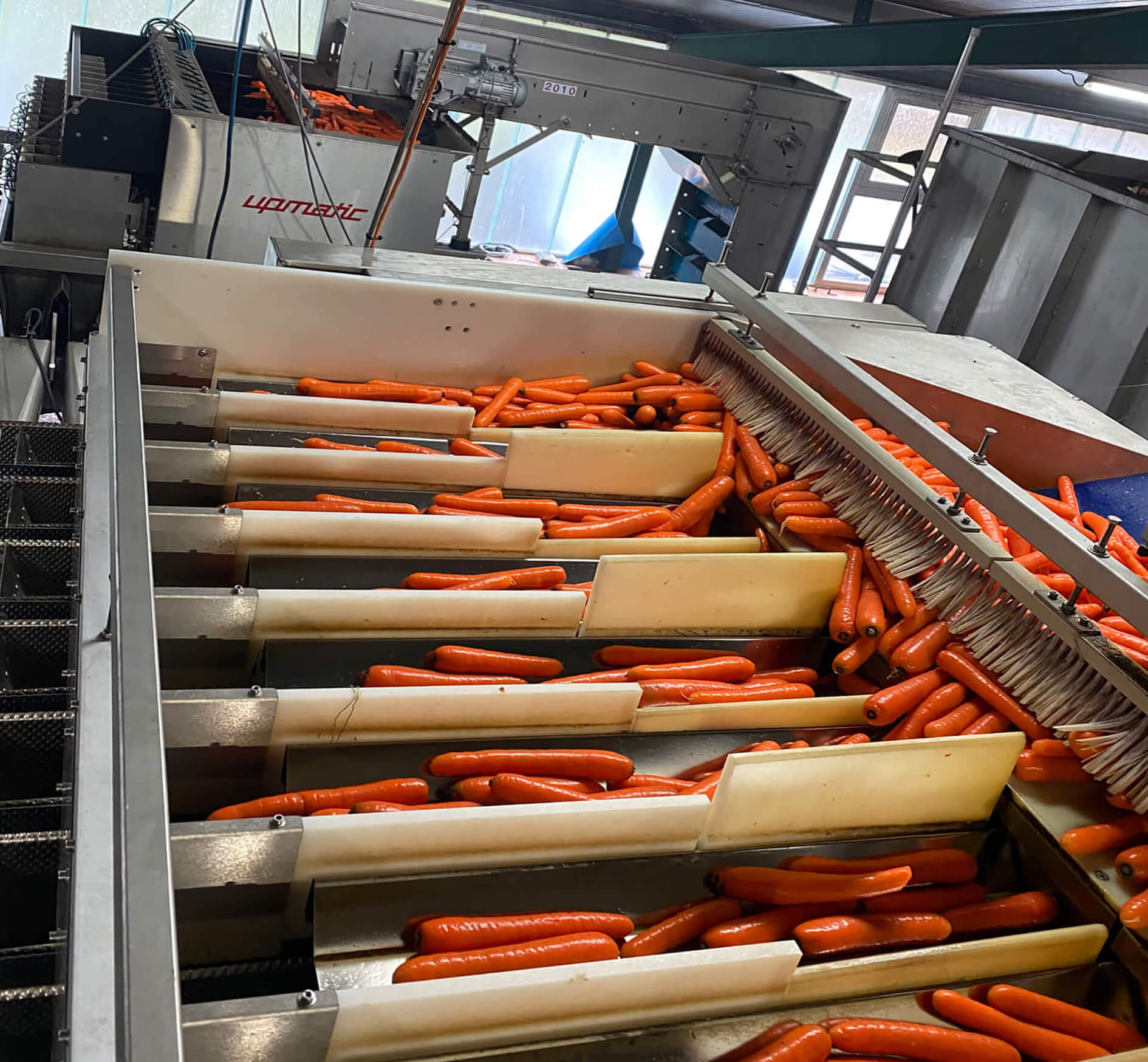

As a true universal weighing machine, the upmatic 2114 is well suited for almost all small and large products in the agricultural sector.

TECHNICAL SPECIFICATIONS

  • Weighing performance up to 85 ppm
  • Weighing range : 0.5 – 25 kg
  • Verifiable according to 2014/32/EU
  • Rated voltage: 230 / 400 V at 50 / 60 Hz
  • Power consumption: approx. 4.0 kW
  • Air pressure: 6 bar unoiled
  • Air consumption per cycle: approx. 8.0 l
  • Water requirement: –

MACHINE MODEL

  • Version available in painted and stainless steel.
  • 2108-2008
  • 2110-2010
  • 2112-2012
  • 2114 – 2014

APPLICATION AREAS

  • infeed belts
  • transverse ligaments
  • Storage
  • hand spout
  • pedestal / stage
  • remote access
